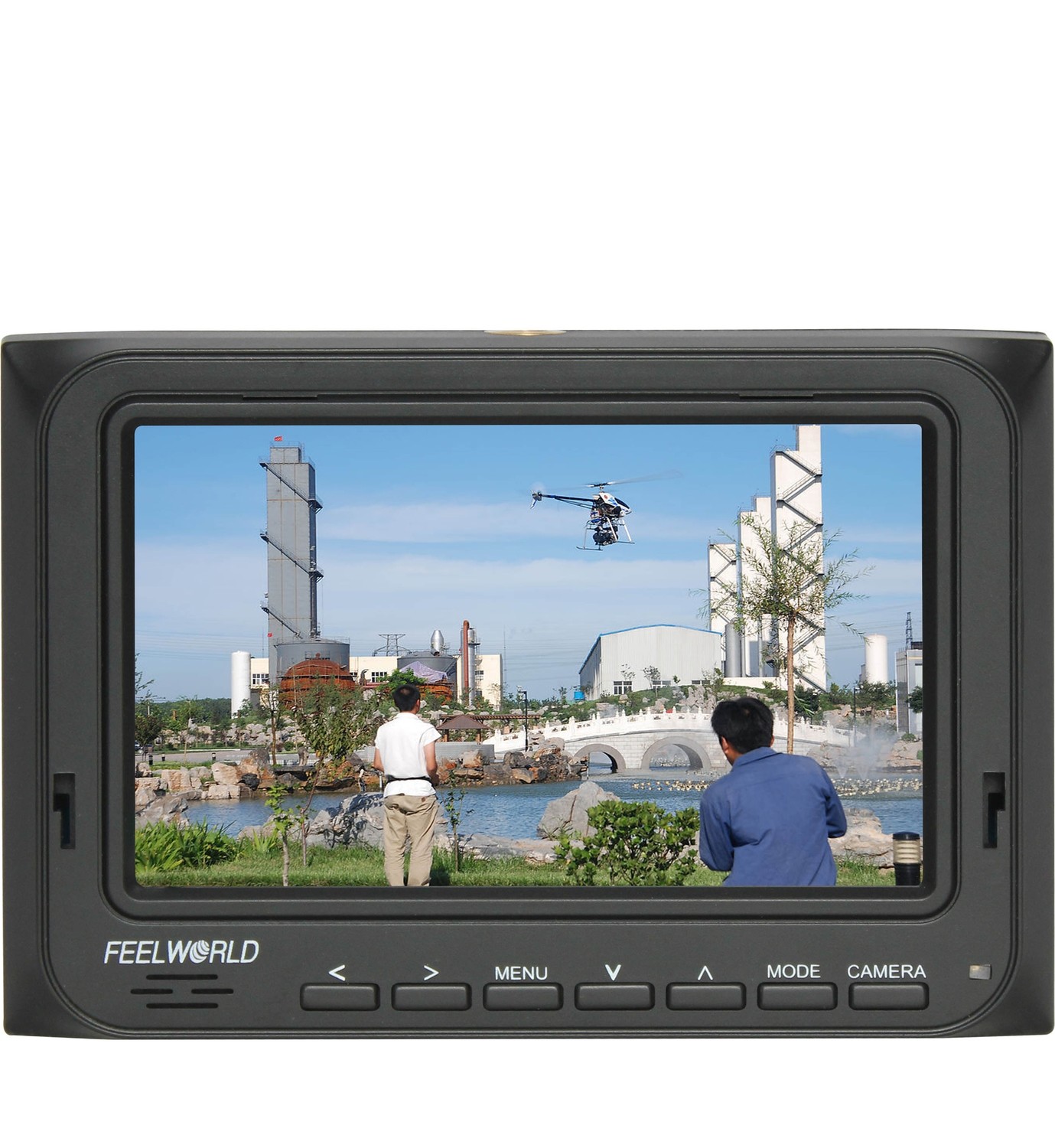

Feelworld FPV-500A
Marke:
Feelworld
● The first ground stand HD monitor, designed specially for outdoor users,
does not have “blue screen”, is your best choice FPV or aerophotography
● High resolution 800*480,contrast ratio 500:1 and brightness 350cd/
seizing much more clear world
● Multi color format support, enter the menu manually to select the same
format as your can.
● Analog composite video AV input, connect the aerial camera
● 16:9 aspect ratio, switch the display mode 16:9 and 4:3
● Connect with the camera, as a monitor or secondary monitor of aerial
● High brightness,contrast ratio&Dizzy-proof monitor with sun shade, to see
clearly under sunshine.
● 1/4-20 thread hole is included in the bottom, easily to mount on the tripod.
| Modell | FPV-500A | |
| Helligkeit | 350cd/m2 | |
| Auflösung | 800x480 Pixel | |
| DISPLAY | Kontrast | 500:1 |
| Seitenverhältnis | 16:9 | |
| Hintergrundbeleuchtung | LED | |
| Videoformat | PAL / NTSC | |
| Betrachtungwinkel | 70°/70° (L/R) 50°/70° (U/D) | |
| EINGANG | Eingangssignal | Audio, Video, |
| AUSGANG | Ausgangssignal | Stereo, 3,5mm Kopfhörerausgang |
| Eingangsspannung | DC 6-24V | |
| POWER | Stromverbrauch | ≤ 7W |
| Akku | 7.4V / 2200maH (2 Stunden) | |
| UMGEBUNG | Betriebstemperatur | -20°C ≈ 50°C |
| Lagerungstemperatur | -30°C ≈ 60°C | |
| Maße + Gewicht | Befestigungsmöglichkeit | 1/4 Zoll Gewinde, |
| Maße (Breite / Höhe / Tiefe) | 14,6 x 10,0 x 3,0 cm | |
| Gewicht | 260 g |
