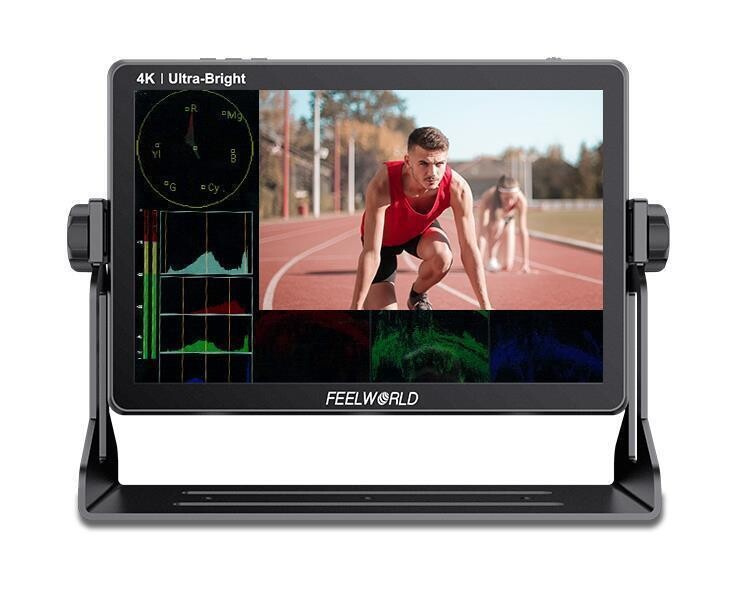

FEELWORLD LUT11H 10.1" Ultraheller Touch-Monitor mit 2000cdm2
Screen Size： 10.1" IPS
Resolution： 1920x1200 pixels
Aspect ratio： 16:10
1*HDMI, DC OUT 8V, Stereo Headphone
10.1-inch Professional 4K HDMI Camera Monitor
Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details,accurately reflect the original colors.
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
Ideal for outdoor shooting
Backed by 2000nits of brightness, LUT11H isn't afraid to get a strong light. The screen visible clearly even outdoor shooting, no need to use sun-hood.
Built-in an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
Adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
On the top of LUT11H comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Support to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. LUT11H allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT11H becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz, which is transmitting without loss and the screen is more smooth and clear. And provides 3.5mm headphone jack to monitor audio.
Note: HDMI1 input default to loop-out from HDMI1 output, HDMI2 can’t loop-out
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
The LUT11H is not only equipped with DC IN 12V (suit for use 12/3A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT11H extends camera run-time, while providing a more usable display.
Long-lasting power for outdoor shooting
The rear of monitor of LUT11H have dual battery plates, can install two standard NP-F batteries, long-lasting power for your screen. In addition, you can switch the battery quickly, just double tap the battery icon on the upper right corner of the monitor about 3 seconds to finish the switching, and don’t worry interrupting monitoring. Install one F970 battery (6600mah) last for about 2 hours, and install two F970 batteries last for about 3.5-4 hours. You can choose install 1 or 2 battery base on your need.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase separately. Higher capability (working time) will be longer)
Strengthen the cooperation between the cameraman and the director
There is a rear TALLY light with 3 colors （green, red, yellow）display, and controlled via DB-9 ports at the bottom of the monitor.
LUT11H built-in up to 9 languages, meet the different needed.
The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
